High-Performance N35EH Neodymium Rare Earth Rectangular Magnet 11.2 x 1.5 x 2 mm | Durable &Versatile for Multiple Applications
High-Performance N35EH Neodymium Rare Earth Rectangular Magnet 11.2 x 1.5 x 2 mm | Durable &Versatile for Multiple Applications
Couldn't load pickup availability
Specifications
- Material Grade: N35EH

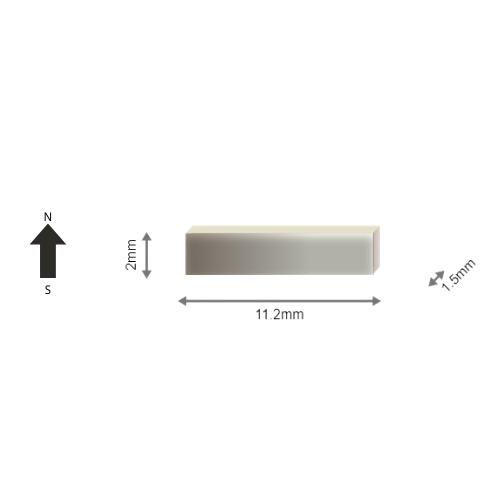

- Dimensions (L x W x T): 11.2 x 1.5 x 2 mm (0.441 x 0.059 x 0.079 inches)
- Pull Force: Approx. 3.5 kg
- Coating: Nickel-Copper-Nickel (Ni-Cu-Ni)
- Magnetization Direction: Through the thickness (2 mm)
- Surface Field: 3,100 Gauss
- Flux Density: 12,500 Gauss
- Maximum Operating Temperature: 200°C
- Tolerance: +/- 0.05 mm
- Weight: 1.8 grams
- Part Number: N35EH-112152-NC
- Package Quantity: 50 pieces
Performance Parameters
| Parameter | Value |
|---|---|
| Br (T): | 1.17 - 1.14 |
| Hcb (kA/m): | 875 - 860 |
| Hcj (kA/m): | 1,955 |
| BHmax (kJ/m³): | 263 - 247 |
| Hk/Hcj: | 1.05 |
Product Description
Our 11.2 x 1.5 x 2 mm N35EH grade neodymium rectangular magnet offers high magnetic strength and thermal resistance, making it perfect for demanding applications. With a pull force of 3.5 kg, this magnet is ideal for sensors, mechanical assemblies, and high-temperature environments.
Manufactured using premium Neodymium-Iron-Boron (NdFeB) alloy and coated with durable Nickel-Copper-Nickel (Ni-Cu-Ni), this magnet ensures excellent corrosion resistance and mechanical stability. Its maximum operating temperature of 200°C guarantees reliable performance in challenging conditions.
Produced under strict ISO 9001 standards, this rectangular magnet guarantees consistent quality and precision for industrial and personal applications.
Key Features
- High Magnetic Strength: Provides a pull force of 3.5 kg, suitable for demanding applications.
- Heat Resistant: Operates efficiently at temperatures up to 200°C.
- Durable Coating: Ni-Cu-Ni coating enhances corrosion resistance and longevity.
- Precision Manufacturing: Tight tolerance of +/- 0.05 mm ensures accurate fitting and performance.
Applications
- High-temperature sensors and instruments
- Magnetic couplings and mechanical assemblies
- Industrial automation and robotics
- Prototyping and advanced engineering
Safety Warnings
- Fragility: Handle with care to prevent chipping or cracking.
- Health Caution: Keep away from pacemakers and sensitive medical devices.
- Child Safety: Not suitable for children; small magnets pose a risk of ingestion.
- Proper Disposal: Safely dispose of damaged magnets to avoid hazards.
This N35EH Neodymium Rectangular Magnet combines strength, heat resistance, and precision, making it an excellent choice for a wide range of industrial and personal applications.
