High-Performance 42UHT Neodymium Rare Earth Rectangular Magnet 20 x 16 x 6 mm | Durable &Versatile for Multiple Applications
High-Performance 42UHT Neodymium Rare Earth Rectangular Magnet 20 x 16 x 6 mm | Durable &Versatile for Multiple Applications
Couldn't load pickup availability
Specifications
- Material Grade: 42UHT

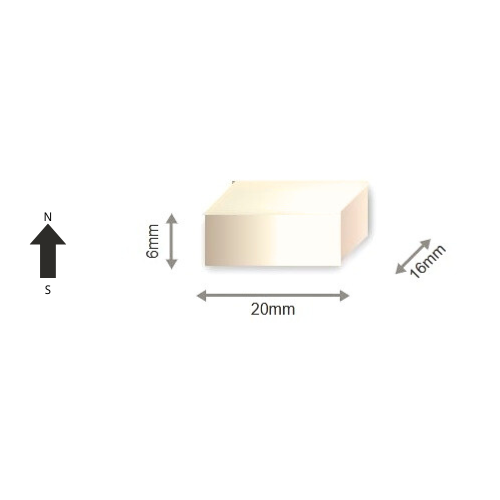

- Dimensions (L x W x T): 20 x 16 x 6 mm (0.787 x 0.630 x 0.236 inches)
- Pull Force: Approx. 18 kg
- Coating: Zinc (Zn)
- Magnetization Direction: Through the thickness (6 mm)
- Surface Field: 3,700 Gauss
- Flux Density: 14,200 Gauss
- Maximum Operating Temperature: 240°C
- Tolerance: +/- 0.05 mm
- Weight: 38 grams
- Part Number: 42UHT-20166-ZN
- Package Quantity: 10 pieces
Performance Parameters
| Parameter | Value |
|---|---|
| Br (T): | 1.35 - 1.32 |
| Hcb (kA/m): | 915 - 890 |
| Hcj (kA/m): | 2,100 |
| BHmax (kJ/m³): | 342 - 318 |
| Hk/Hcj: | 1.05 |
Product Description
Our 20 x 16 x 6 mm 42UHT grade neodymium rectangular magnet offers exceptional magnetic strength and ultra-high thermal resistance, making it suitable for extreme industrial environments. With a pull force of 18 kg, this magnet is ideal for sensors, magnetic couplings, and high-temperature systems.
Manufactured using premium Neodymium-Iron-Boron (NdFeB) alloy and coated with durable Zinc (Zn), this magnet ensures excellent corrosion resistance and mechanical stability. Its maximum operating temperature of 240°C guarantees reliable performance in the most challenging conditions.
Produced under strict ISO 9001 standards, this rectangular magnet guarantees consistent quality and precision for industrial and personal applications.
Key Features
- High Magnetic Strength: Provides a pull force of 18 kg, suitable for heavy-duty applications.
- Ultra-High Thermal Resistance: Operates efficiently at temperatures up to 240°C.
- Durable Coating: Zinc coating enhances corrosion resistance and longevity.
- Precision Manufacturing: Tight tolerance of +/- 0.05 mm ensures accurate fitting and performance.
Applications
- High-temperature industrial sensors and instruments
- Magnetic couplings and mechanical assemblies
- Aerospace and advanced engineering systems
- Industrial automation and robotics
Safety Warnings
- Fragility: Handle with care to prevent chipping or cracking.
- Health Caution: Keep away from pacemakers and sensitive medical devices.
- Child Safety: Not suitable for children; small magnets pose a risk of ingestion.
- Proper Disposal: Safely dispose of damaged magnets to avoid hazards.
This 42UHT Neodymium Rectangular Magnet combines exceptional strength, ultra-high thermal resistance, and precision, making it a reliable choice for a wide range of industrial and personal applications.
