High-Performance 38UH Neodymium Rare Earth Rectangular Magnet 30 x 22.2 x 5.5 mm | Durable &Versatile for Multiple Applications
High-Performance 38UH Neodymium Rare Earth Rectangular Magnet 30 x 22.2 x 5.5 mm | Durable &Versatile for Multiple Applications
Couldn't load pickup availability
Specifications
- Material Grade: 38UH

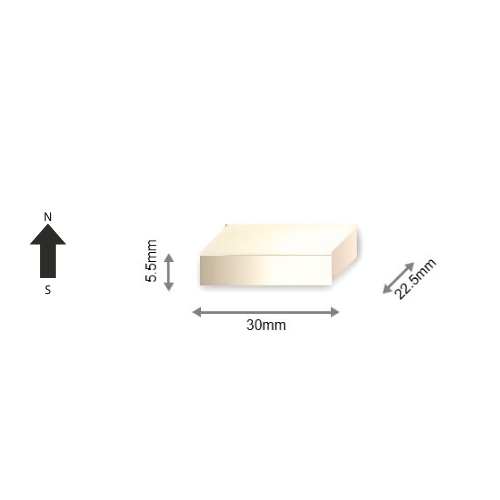

- Dimensions (L x W x T): 30 x 22.2 x 5.5 mm (1.181 x 0.874 x 0.217 inches)
- Pull Force: Approx. 18 kg
- Coating: Zinc (Zn)
- Magnetization Direction: Through the thickness (5.5 mm)
- Surface Field: 3,600 Gauss
- Flux Density: 13,800 Gauss
- Maximum Operating Temperature: 180°C
- Tolerance: +/- 0.05 mm
- Weight: 28 grams
- Part Number: 38UH-3022255-ZN
- Package Quantity: 50 pieces
Performance Parameters
| Parameter | Value |
|---|---|
| Br (T): | 1.22 - 1.19 |
| Hcb (kA/m): | 875 - 860 |
| Hcj (kA/m): | 1,955 |
| BHmax (kJ/m³): | 287 - 263 |
| Hk/Hcj: | 1.05 |
Product Description
Our 30 x 22.2 x 5.5 mm 38UH grade neodymium rectangular magnet provides exceptional magnetic strength and ultra-high thermal resistance, making it ideal for demanding industrial applications. With a pull force of 18 kg, this magnet is perfect for sensors, magnetic couplings, and advanced engineering projects.
Manufactured using premium Neodymium-Iron-Boron (NdFeB) alloy and coated with durable Zinc (Zn), this magnet ensures excellent corrosion resistance and mechanical stability. Its maximum operating temperature of 180°C guarantees reliable performance in high-temperature environments.
Produced under strict ISO 9001 standards, this rectangular magnet guarantees consistent quality and precision for various industrial and personal applications.
Key Features
- High Magnetic Strength: Provides a pull force of 18 kg, suitable for heavy-duty applications.
- Ultra-High Thermal Resistance: Operates efficiently at temperatures up to 180°C.
- Durable Coating: Zinc coating enhances corrosion resistance and mechanical stability.
- Precision Manufacturing: Tight tolerance of +/- 0.05 mm ensures accurate fitting and performance.
Applications
- High-temperature industrial sensors and instruments
- Magnetic couplings and mechanical assemblies
- Advanced engineering and prototyping
- Aerospace and automotive systems
Safety Warnings
- Fragility: Handle with care to prevent chipping or cracking.
- Health Caution: Keep away from pacemakers and sensitive medical devices.
- Child Safety: Not suitable for children; small magnets pose a risk of ingestion.
- Proper Disposal: Safely dispose of damaged magnets to avoid hazards.
This 38UH Neodymium Rectangular Magnet combines exceptional strength, thermal resistance, and precision, making it an excellent choice for a wide range of industrial and personal applications.
