High-Performance N52 Neodymium Rare Earth Disc Magnet D11.68 x 5.08 mm | Durable &Versatile for Multiple Applications
High-Performance N52 Neodymium Rare Earth Disc Magnet D11.68 x 5.08 mm | Durable &Versatile for Multiple Applications
Couldn't load pickup availability
Specifications
- Material Grade: N52

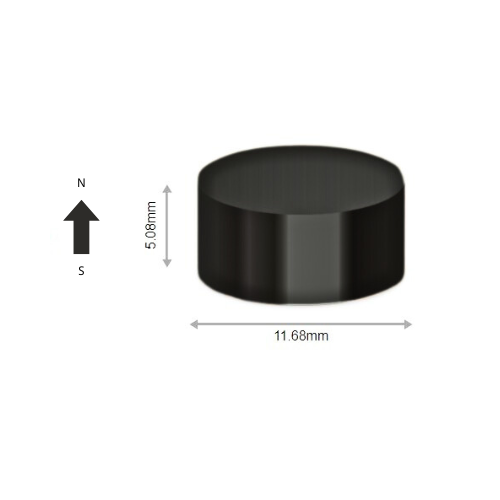

- Dimensions (Diameter x Thickness): D11.68 x 5.08 mm (0.46 x 0.2 inches)
- Pull Force: Approx. 4.5 kg
- Coating: Nickel-Copper-Epoxy (Ni-Cu-Epoxy)
- Magnetization Direction: Through the thickness (5.08 mm)
- Surface Field: 3,800 Gauss
- Flux Density: 14,500 Gauss
- Maximum Operating Temperature: 80°C
- Tolerance: +/- 0.05 mm
- Weight: 5 grams
- Part Number: N52-D11685-NE
- Package Quantity: 50 pieces
Performance Parameters
| Parameter | Value |
|---|---|
| Br (T): | 1.45 - 1.42 |
| Hcb (kA/m): | 1,050 - 1,020 |
| Hcj (kA/m): | 1,875 |
| BHmax (kJ/m³): | 398 - 374 |
| Hk/Hcj: | 1.05 |
Product Description
Our D11.68 x 5.08 mm N52 grade neodymium disc magnet provides outstanding magnetic strength and precision, making it suitable for a wide range of applications. With a pull force of 4.5 kg, this magnet is ideal for industrial, technical, and personal projects.
Manufactured using high-quality Neodymium-Iron-Boron (NdFeB) alloy and coated with durable Nickel-Copper-Epoxy (Ni-Cu-Epoxy), this magnet ensures excellent corrosion resistance and mechanical stability. Its maximum operating temperature of 80°C guarantees dependable performance in standard environments.
Produced under strict ISO 9001 standards, this disc magnet guarantees consistent quality and precision for various industrial and personal applications.
Key Features
- Exceptional Magnetic Strength: Provides a pull force of 4.5 kg, suitable for versatile applications.
- High Precision: Tight tolerance of +/- 0.05 mm ensures accurate fitting and performance.
- Durable Coating: Ni-Cu-Epoxy coating enhances corrosion resistance and longevity.
- Easy Integration: Compact size makes it perfect for space-constrained applications.
Applications
- Industrial and technical assemblies
- Magnetic couplings and mechanical systems
- Prototyping and advanced engineering
- DIY and hobby projects
Safety Warnings
- Fragility: Handle with care to prevent chipping or cracking.
- Health Caution: Keep away from pacemakers and sensitive medical devices.
- Child Safety: Not suitable for children; small magnets pose a risk of ingestion.
- Proper Disposal: Safely dispose of damaged magnets to avoid hazards.
This N52 Neodymium Disc Magnet combines high strength, precision, and durability, making it an excellent choice for a wide range of industrial and personal applications.
