High-Performance N48 Neodymium Rare Earth Cylinder Magnet D5 x 5 mm | Durable &Versatile for Multiple Applications
High-Performance N48 Neodymium Rare Earth Cylinder Magnet D5 x 5 mm | Durable &Versatile for Multiple Applications
Couldn't load pickup availability
Specifications
- Material Grade: N48

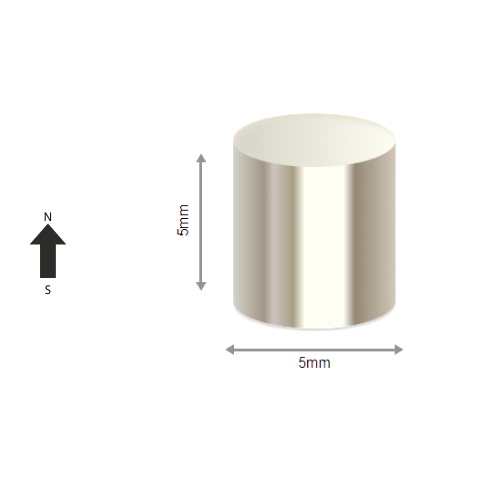

- Dimensions (Diameter x Thickness): D5 x 5 mm (0.197 x 0.197 inches)
- Pull Force: Approx. 2.5 kg
- Coating: Nickel-Copper-Nickel (Ni-Cu-Ni)
- Magnetization Direction: Through the thickness (5 mm)
- Surface Field: 3,300 Gauss
- Flux Density: 13,500 Gauss
- Maximum Operating Temperature: 80°C
- Tolerance: +/- 0.05 mm
- Weight: 0.9 grams
- Part Number: N48-505-NC
- Package Quantity: 100 pieces
Performance Parameters
| Parameter | Value |
|---|---|
| Br (T): | 1.38 - 1.35 |
| Hcb (kA/m): | 955 - 923 |
| Hcj (kA/m): | 1,079 |
| BHmax (kJ/m³): | 366 - 342 |
| Hk/Hcj: | 1.05 |
Product Description
Our D5 x 5 mm N48 grade neodymium Cylinder magnet delivers superior magnetic strength in a compact size. With a pull force of 2.5 kg, this magnet is ideal for high-precision applications such as sensors, electronics, and mechanical assemblies.
Manufactured from premium Neodymium-Iron-Boron (NdFeB) alloy and coated with durable Nickel-Copper-Nickel (Ni-Cu-Ni), this magnet provides excellent corrosion resistance and mechanical stability. Its maximum operating temperature of 80°C ensures reliable performance in demanding environments.
Produced under strict ISO 9001 standards, this disc magnet guarantees consistent quality and precision for various applications.
Key Features
- Compact and Powerful: Provides a pull force of 2.5 kg, ideal for secure applications.
- Durable Coating: Ni-Cu-Ni coating enhances corrosion resistance and longevity.
- Precision Manufacturing: Tight tolerance of +/- 0.05 mm ensures accurate fitting and performance.
- Heat Resistant: Operates efficiently at temperatures up to 80°C.
Applications
- Precision sensors and instruments
- Magnetic couplings and assemblies
- Electronics and prototyping
- DIY and hobby projects
Safety Warnings
- Fragility: Handle with care to prevent chipping or cracking.
- Health Caution: Keep away from pacemakers and sensitive medical devices.
- Child Safety: Not suitable for children; small magnets pose a risk of ingestion.
- Proper Disposal: Safely dispose of damaged magnets to avoid hazards.
This N48 Neodymium Cylinder Magnet combines strength, durability, and precision, making it a reliable solution for a wide range of industrial and personal applications.
